Description

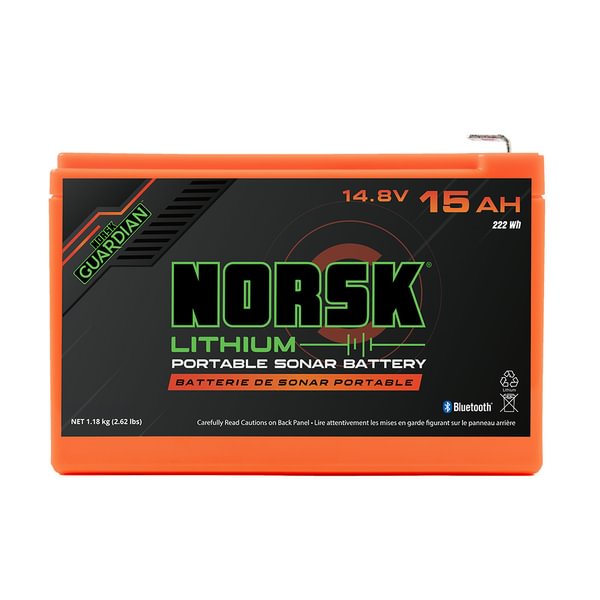

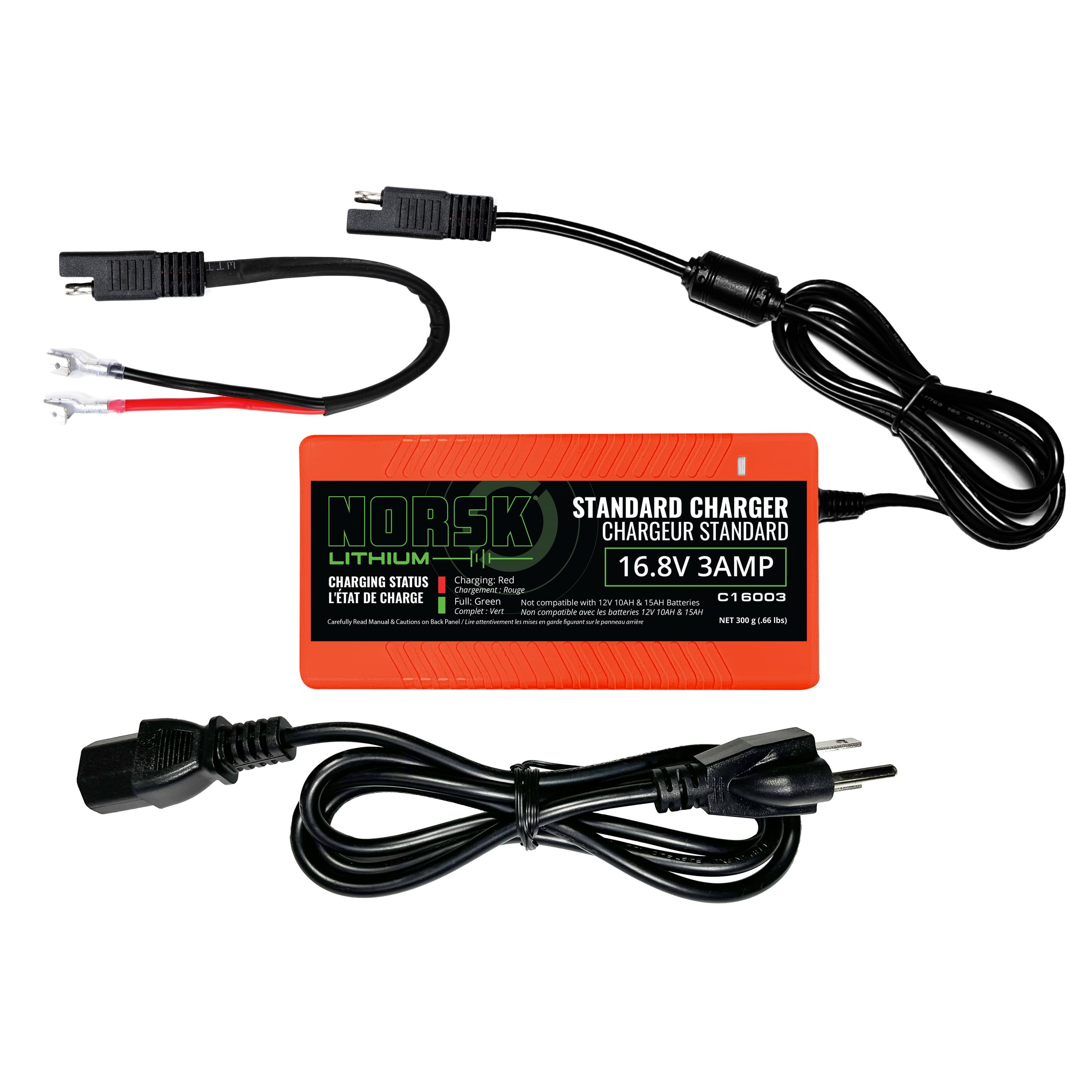

14.8V 15Ah Lithium-Ion Battery with Charger

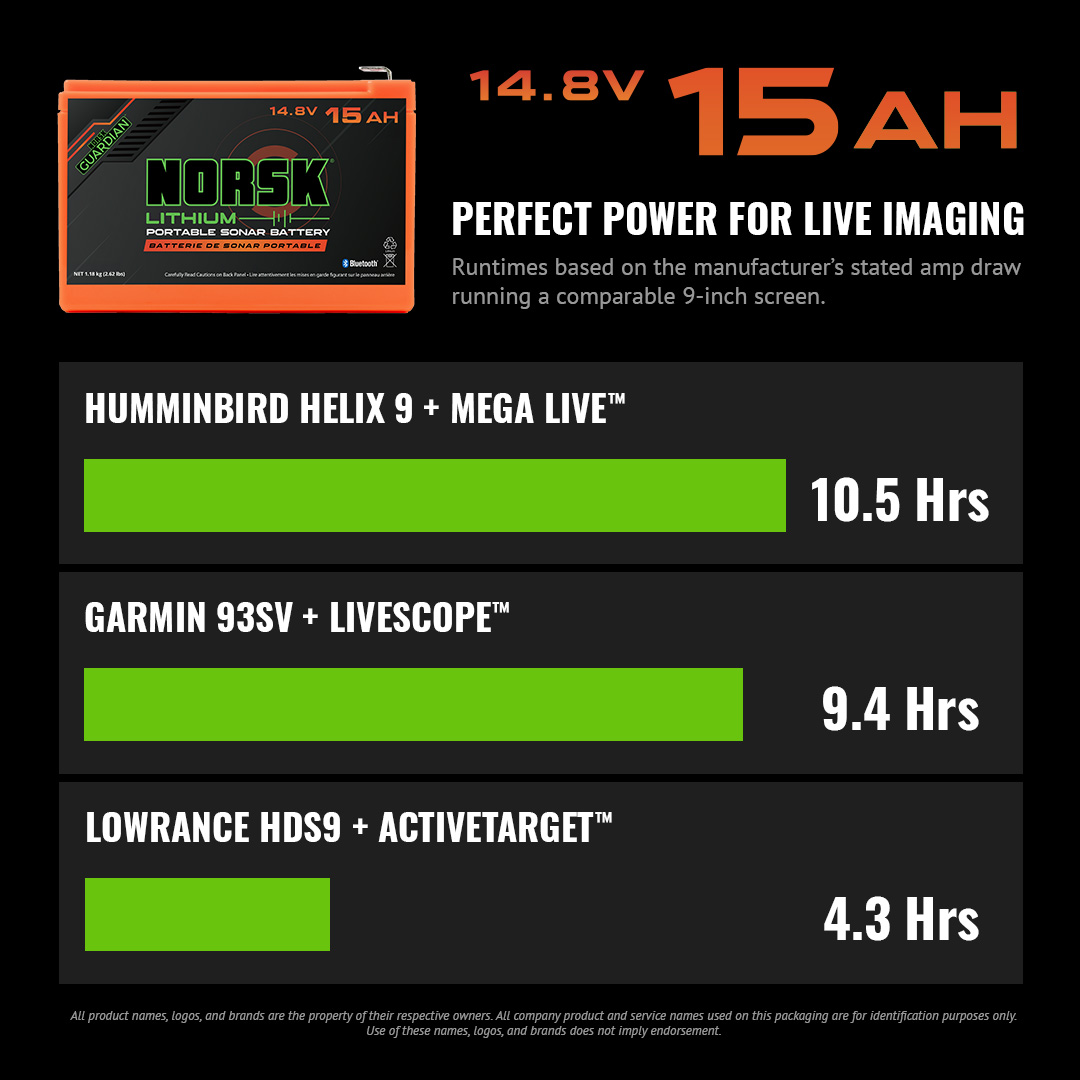

The 14.8V 15Ah Lithium-Ion Battery is designed to support live imaging and forward-facing sonar systems, making it an excellent fit for devices like Humminbird MEGA Live Imaging™, Garmin Livescope™, and Lowrance ActiveTarget™. With a balanced combination of power and portability, it ensures your sonar equipment operates smoothly during your fishing adventures.

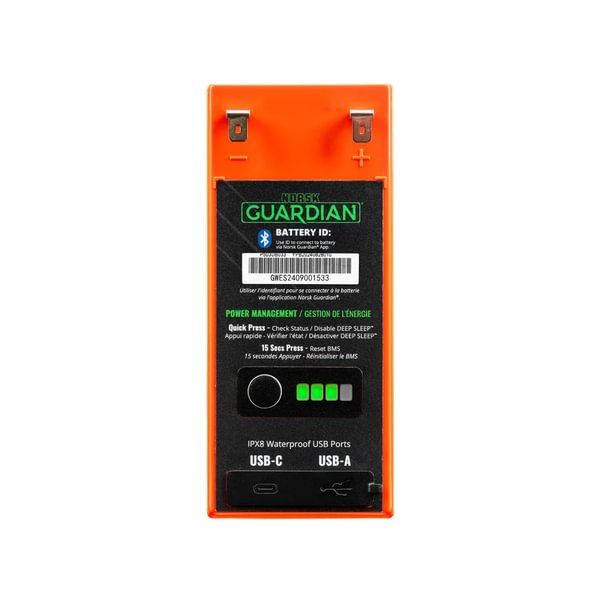

This battery is equipped with Dual IPX8-rated waterproof USB-A and USB-C ports, offering rugged and reliable charging options in wet or challenging conditions. The improved state-of-charge indicator provides an easy way to monitor power levels at a glance, so you always know when it’s time for a recharge.
To maximize battery life, the Deep Sleep™ feature disconnects power from the terminals, eliminating self-discharge during periods of inactivity. This ensures that the battery retains its charge even after long periods of storage, giving you peace of mind and ready-to-go performance when you need it.

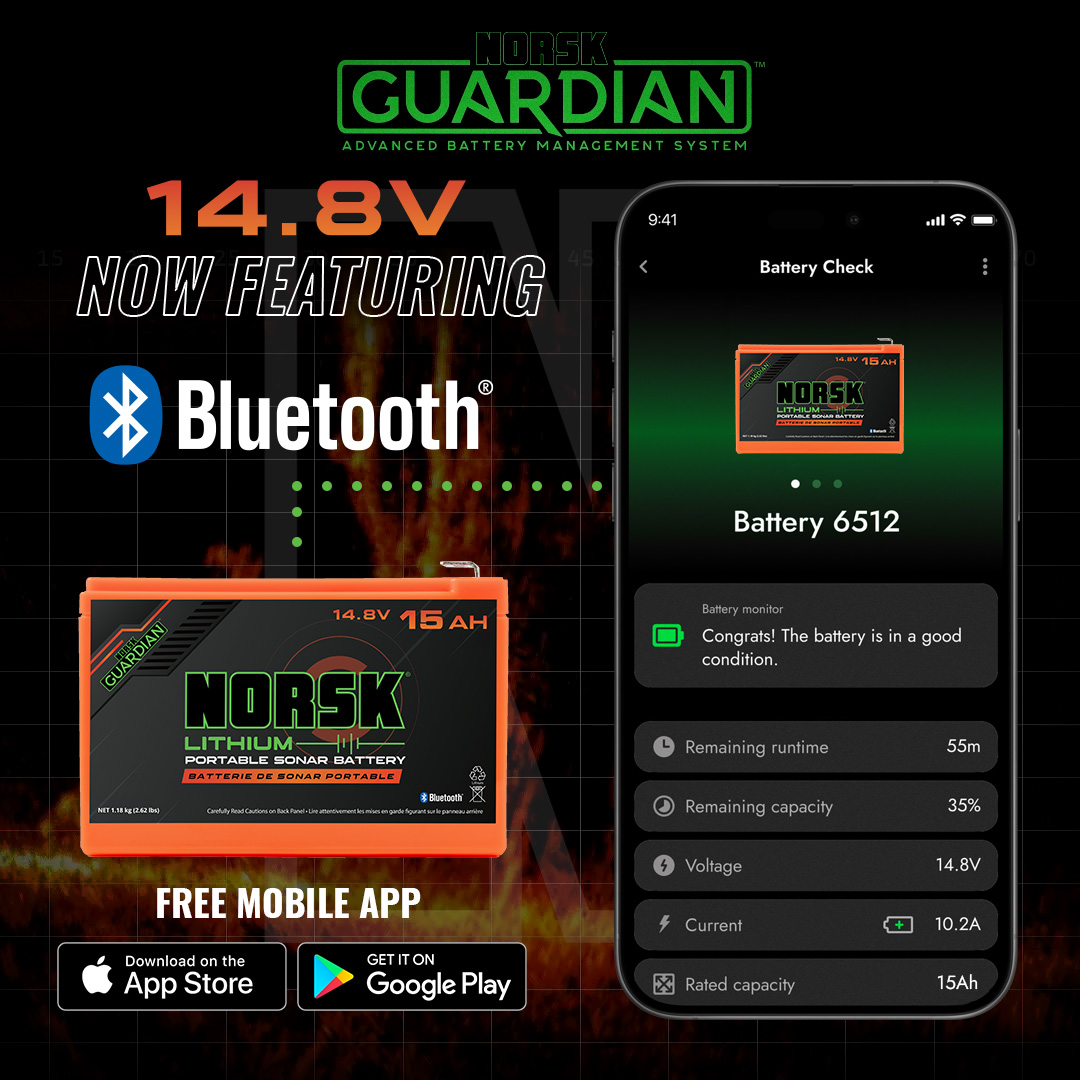

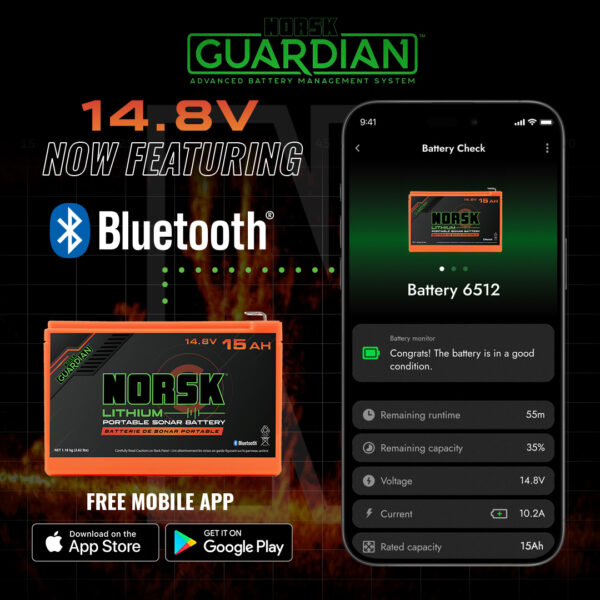

Thanks to its integrated Bluetooth technology, you can easily track and adjust the battery’s settings using your smartphone through the Norsk Guardian® App. This capability allows you to stay informed about the battery’s health and performance, ensuring that your sonar system continues to operate efficiently throughout your time on the water.
SPECS
| Battery Type: | Lithium-Ion (NMC) |
| Rated Capacity: | 15Ah |
| Nominal Voltage: | 14.8V |
| Max Charge Voltage: | 16.8V |
| Discharge Cutoff: | 11.2V |
| Max Charge Current: | 7A |
| Max Continuous Discharge Current: | 20A |
| Max Pulse Discharge Current: | 15A for 3 seconds |
| Weight: | Approx 3.4 lbs |
| Dimensions (L*W*H): | 5.94 x 2.56 x 3.7 inches |
| BMS Protection: | Deep Sleep Over Charge Over Discharge Over Current Short Circuit High Temp Shutoff Low Temp Shutoff |
| Operating Temperature: | Charging: 0 – 45C Discharging: -20 – 60C Storage 0-45C |
| Cycles: | 2,000+ cycles |
